44
Section 4 Configure
WAN
Link
Configure -> WAN
Response
Comment

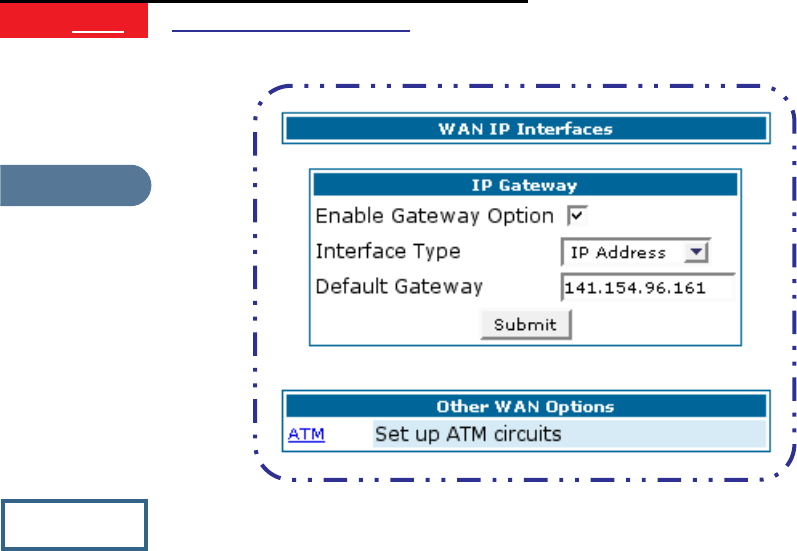

WAN IP Interfaces
Your IP interfaces are listed. Click on an interface to configure it.
IP Gateway
Enable Gateway: You can configure the Gateway to send packets to a
default gateway if it does not know how to reach the destina-
tion host.
Interface Type: If you have PPPoE enabled, you can specify that packets
destined for unknown hosts will be sent to the gateway being
used by the remote PPP peer.. If you select ip-address, you
must enter the IP address of a host on a local or remote net-
work to receive the traffic.
Default Gateway: The IP Address of the default gateway.
Other WAN Options
PPPoE: You can enable PPPoE and the number of PPPoE Sessions. The IP
Interface(s) should be reconfigured after changing this set-
ting.
ATM: You can configure the ATM circuits and the number of Sessions. The IP
Interface(s) should be reconfigured after making changes
here.
