102
System Status
The
Show
link provides this information:
• Number of allowed concurrent WAN users
• Number of WAN connections currently in use
• Address and computer name - of current LAN users
• Timeout - displays status of Idle Timeout Counter. The current user has
this amount of time (from an initial 20 minute interval) remaining prior
to an automatic disconnect from WAN access.
Disconnect Current WAN Users
The procedure is as follows:
Step 1 Click the
Disconnect
link from the WAN Users section of the System Status
page.

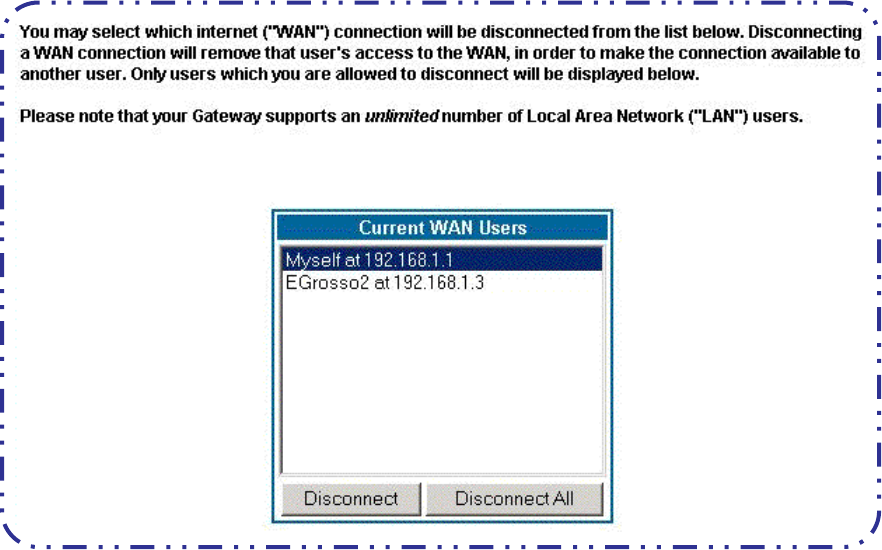

The Disconnect WAN/Internet Users page appears
The Admin and User level password accounts have different privileges
regarding the Disconnect WAN Users function. They are listed below:
• Admin level privileges allow the Admin to disconnect any and all LAN
users from WAN access.
• User level privileges only allow the User to disconnect itself from WAN
access.
Step 2 Select the user from the scrolling list.
